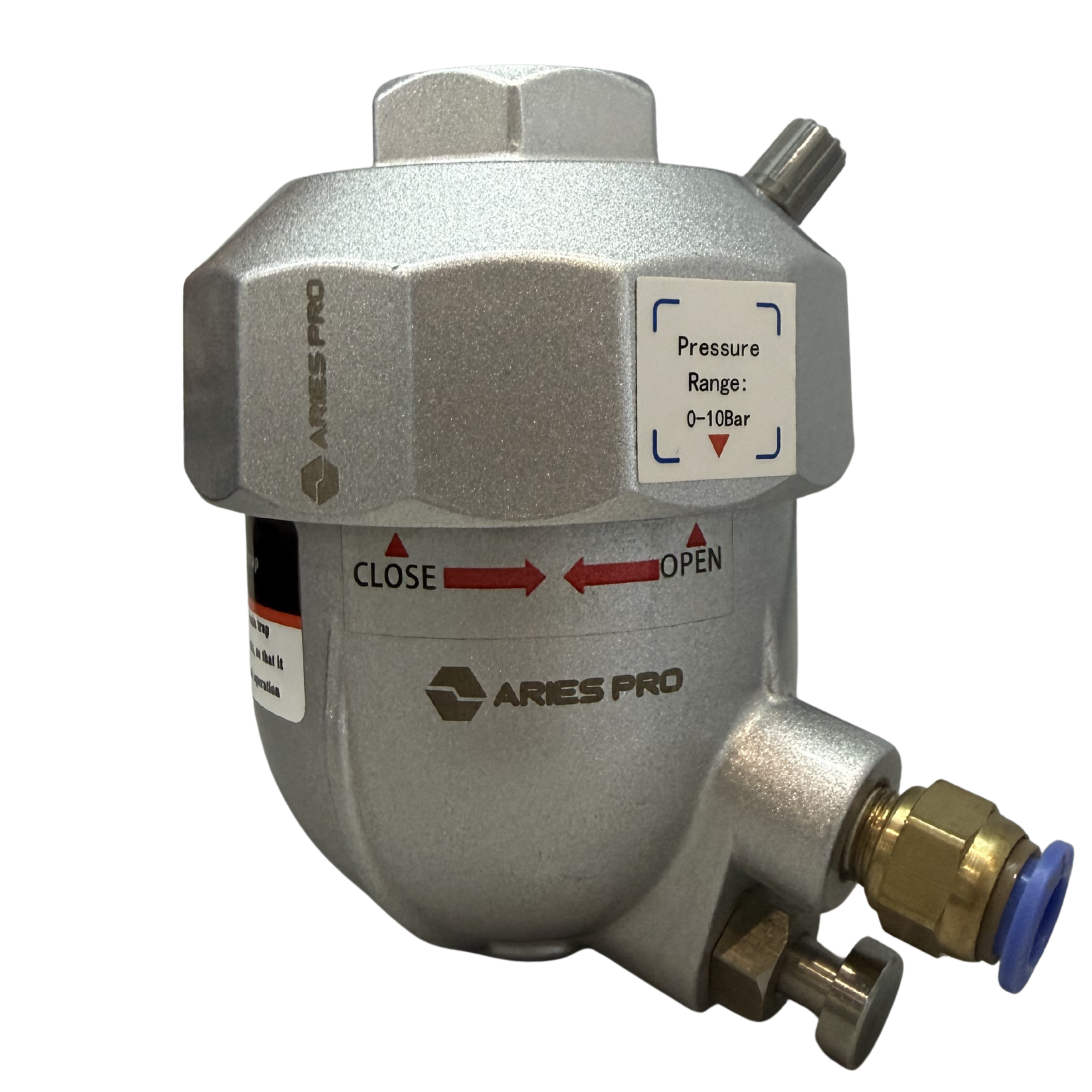

Auto Drain Trap

ARIES PRO Auto Drain Traps are designed to provide efficient and reliable condensate removal in compressed air and gas systems. Built with robust engineering and smart technology, these automatic drain traps eliminate the need for manual draining, preventing moisture accumulation and protecting downstream equipment.

With a compact design, low maintenance requirements, and energy-efficient operation, AriesPro Auto Drain Traps ensure cleaner, drier air for enhanced system performance and longer equipment life. Trusted across various industries, they deliver consistent performance even in demanding operating conditions.

Features

Minimal Gas Loss Technology

Advanced technology ensures minimum compressed air loss during condensate discharge, saving energy and reducing operational costs.

Energy Saving & Environmental Protection

Eco-friendly design reduces energy consumption and protects the environment with efficient condensate management.

Manual Drain Relief

Manual override option provides flexibility for maintenance, testing, and emergency situations when needed.

Quick & Easy Installation

Simple installation process with standard connections saves time and reduces downtime during setup.

How Auto Drain Trap Works

Watch our demonstration video to understand the working principle

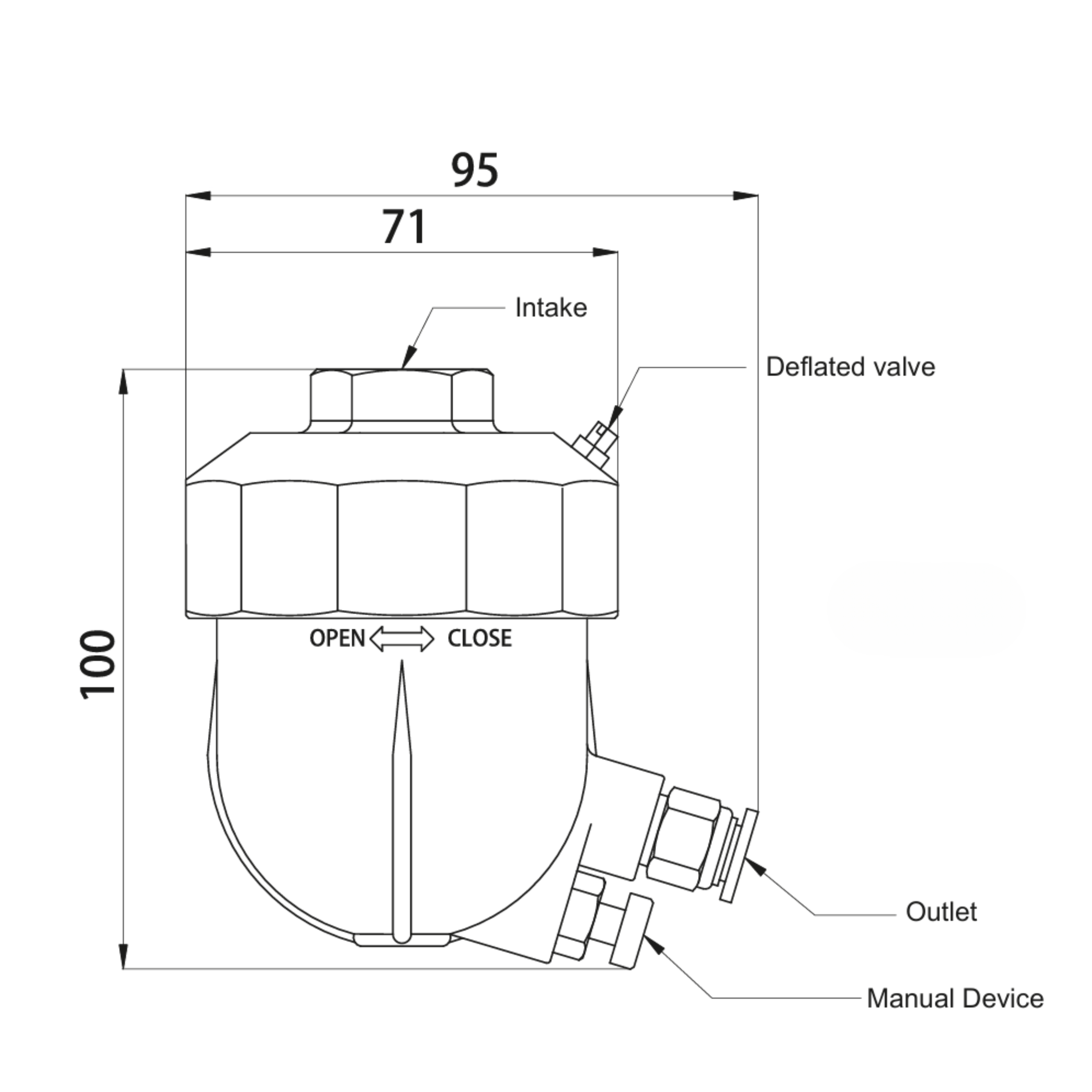

Technical Specifications

Pressure (bar)	Temperature (°C)	Connection (in)	Flow Rate (L/H)	Net Weight (Kg)
0-16	5-80	1/2"	0-20	0.26

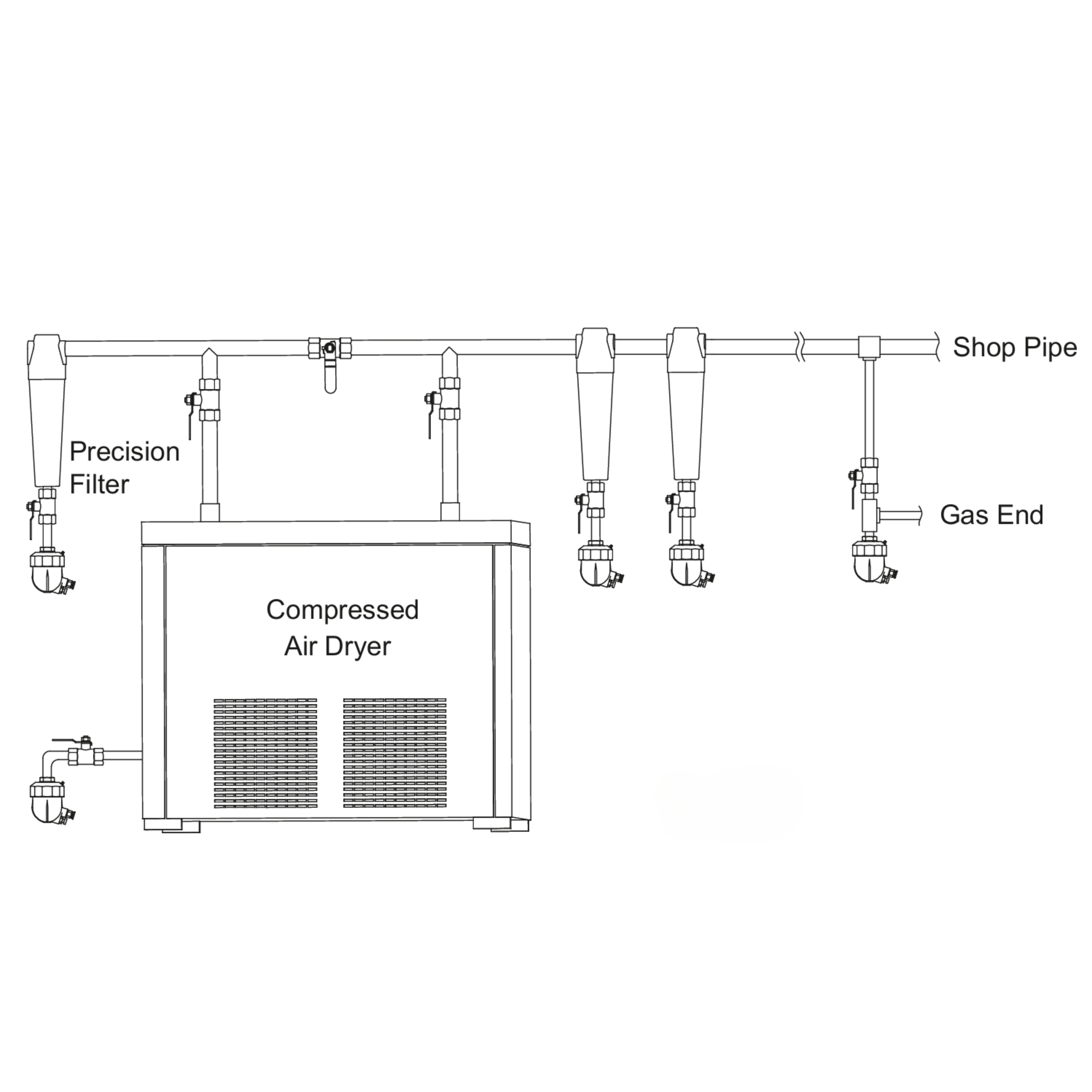

Used in compressed air equipment and pipelines, it can at any time automatically discharge the condensed water generated inside to the out of the compression system in time to keep the compressed air dry and clean.
