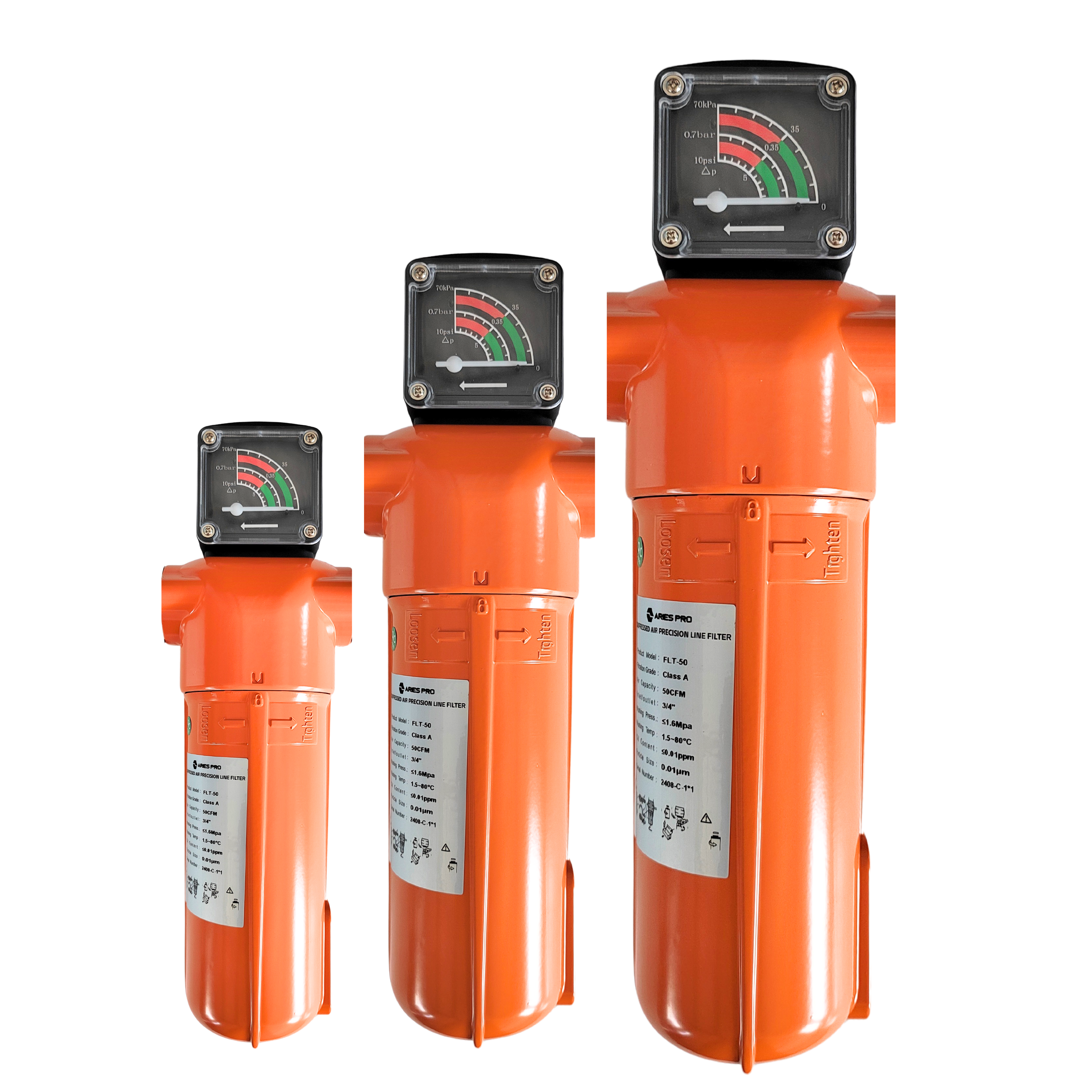

Protect equipment and output with ARIESPRO line filters. From precision coating to food-grade applications, our filtration technology removes dust, oil, and moisture with ease. Experience improved performance and reduced maintenance with air you can trust.
Three Staged filters available in 3 µm, 1 µm, and 0.01 µm filter elements to meet all compressed air requirements.
| Model | Connection | Flow Rate (m³/min) | Max Pressure (bar) | Filtration (µm) | Weight (kg) |
|---|---|---|---|---|---|
| ALF-020G | 1/2" | 2.0 | 16 | 3 / 1 / 0.01 | 0.85 |
| ALF-040G | 3/4" | 4.5 | 16 | 3 / 1 / 0.01 | 1.20 |
| ALF-080G | 1" | 8.5 | 16 | 3 / 1 / 0.01 | 2.10 |
| ALF-150G | 1½" | 15.0 | 16 | 3 / 1 / 0.01 | 3.80 |
Filters are available with 40 bar high pressure also, contact on sales@daltech.in
Installation
.png)
Filter Features
Durable Build
Corrosion-resistant aluminium alloy housing for long-lasting performance in harsh industrial environments.
Efficient Filtration
Removes oil, moisture, and dust particles down to 0.01µm - delivering consistently clean, dry compressed air.
Energy Saving
Low-resistance design cuts energy consumption by up to 10%, reducing long-term operating costs.
Easy Installation
Compact form factor with standard threaded connections and simple one-key element replacement.
High-Pressure Ready
Rated up to 16 bar — suitable for laser cutting, precision machining, and pneumatic tools.
Superior Moisture Removal
Dual-stage coalescing system prevents corrosion, blockages, and water contamination downstream.
Advanced Coalescing Technology
- 3-stage filtration for ultra-clean air
- Borosilicate glass fiber media
- Differential pressure indicator ready
- Low pressure drop design

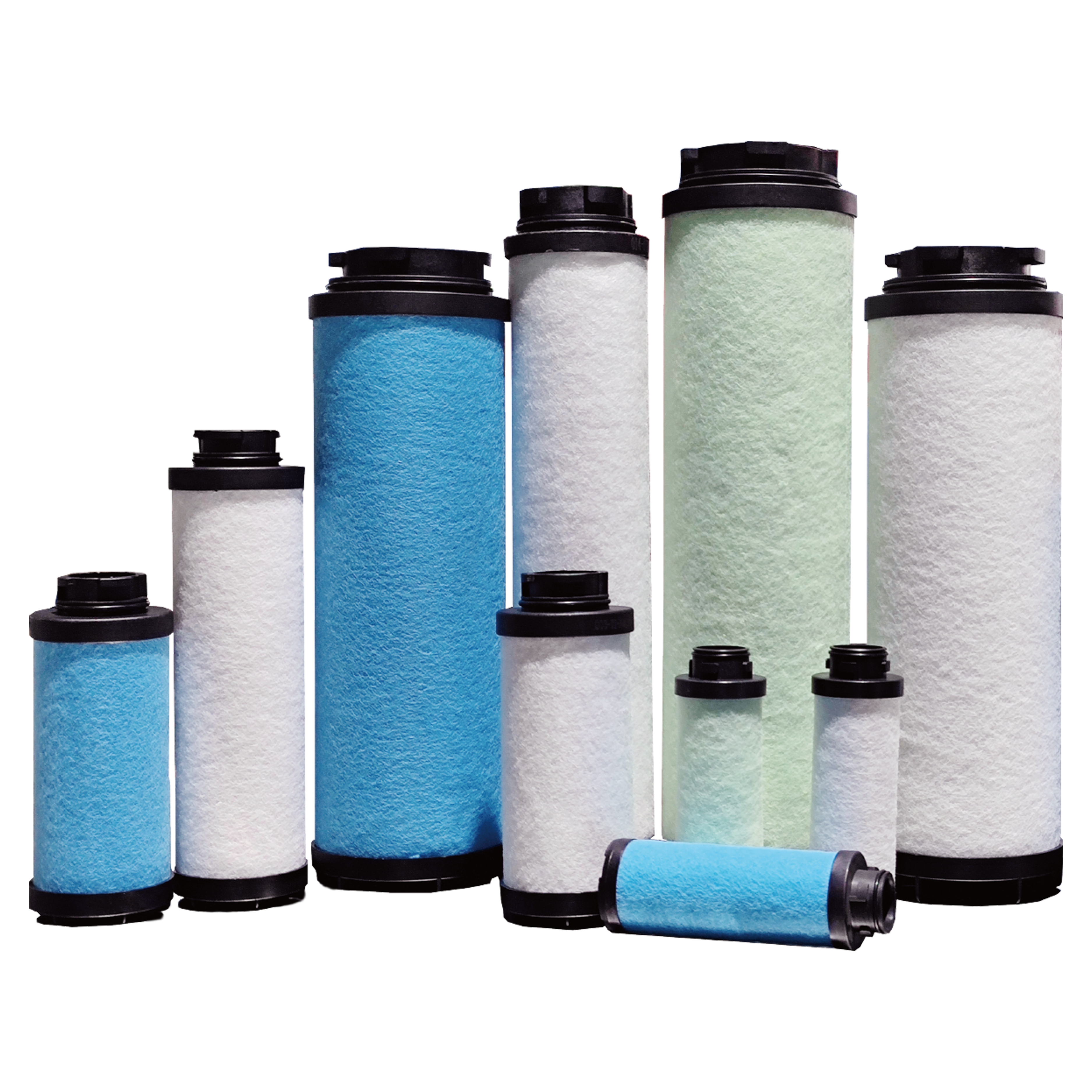

Filter Element
The filter element is an important part of the precision line filter, which can filter the liquid, oil mist, solid particles oil vapor, hydrocarbons in the gas.

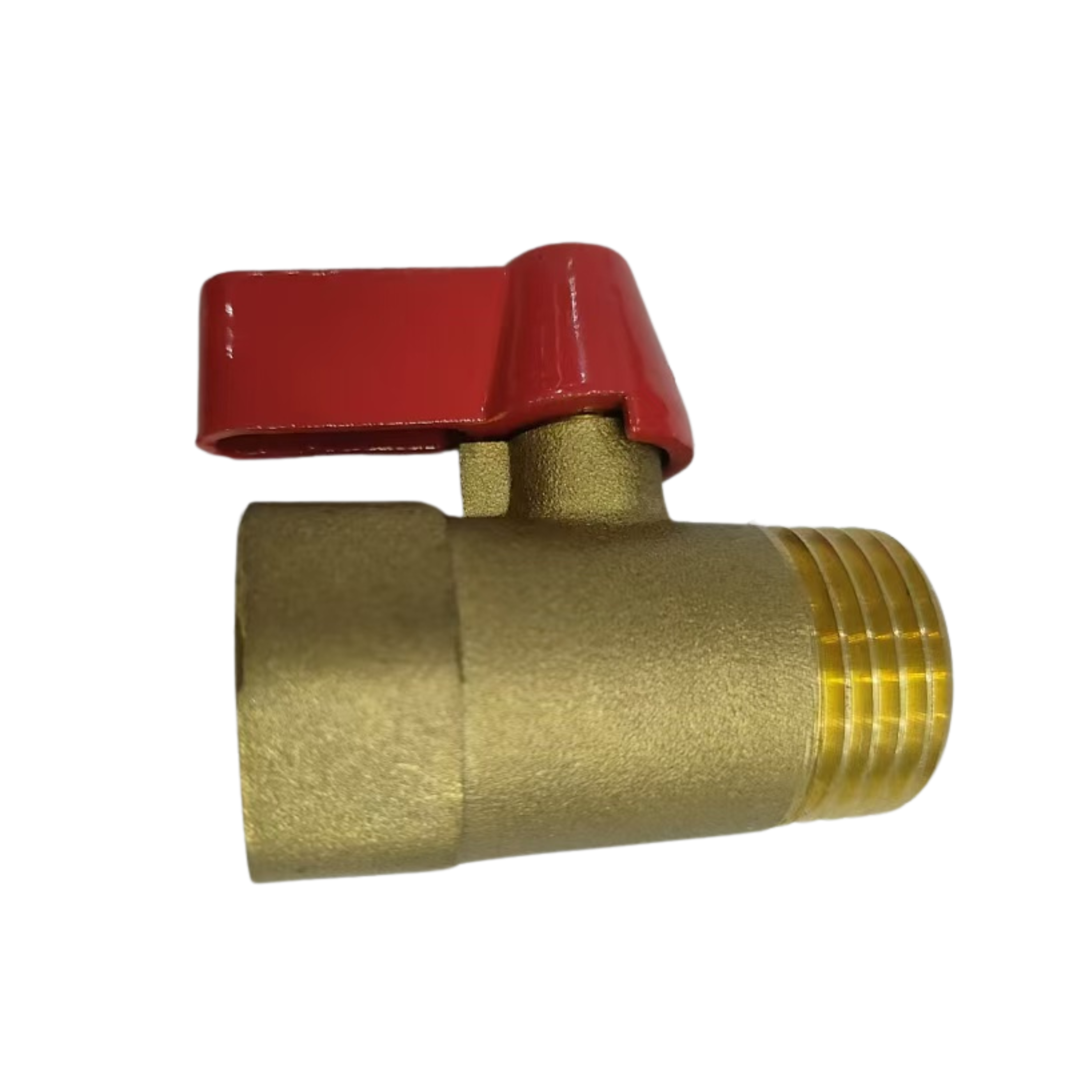

Manual Drain
Manual Drain Trap efficiently removes condensate from your system, keeping operations clean and trouble-free.

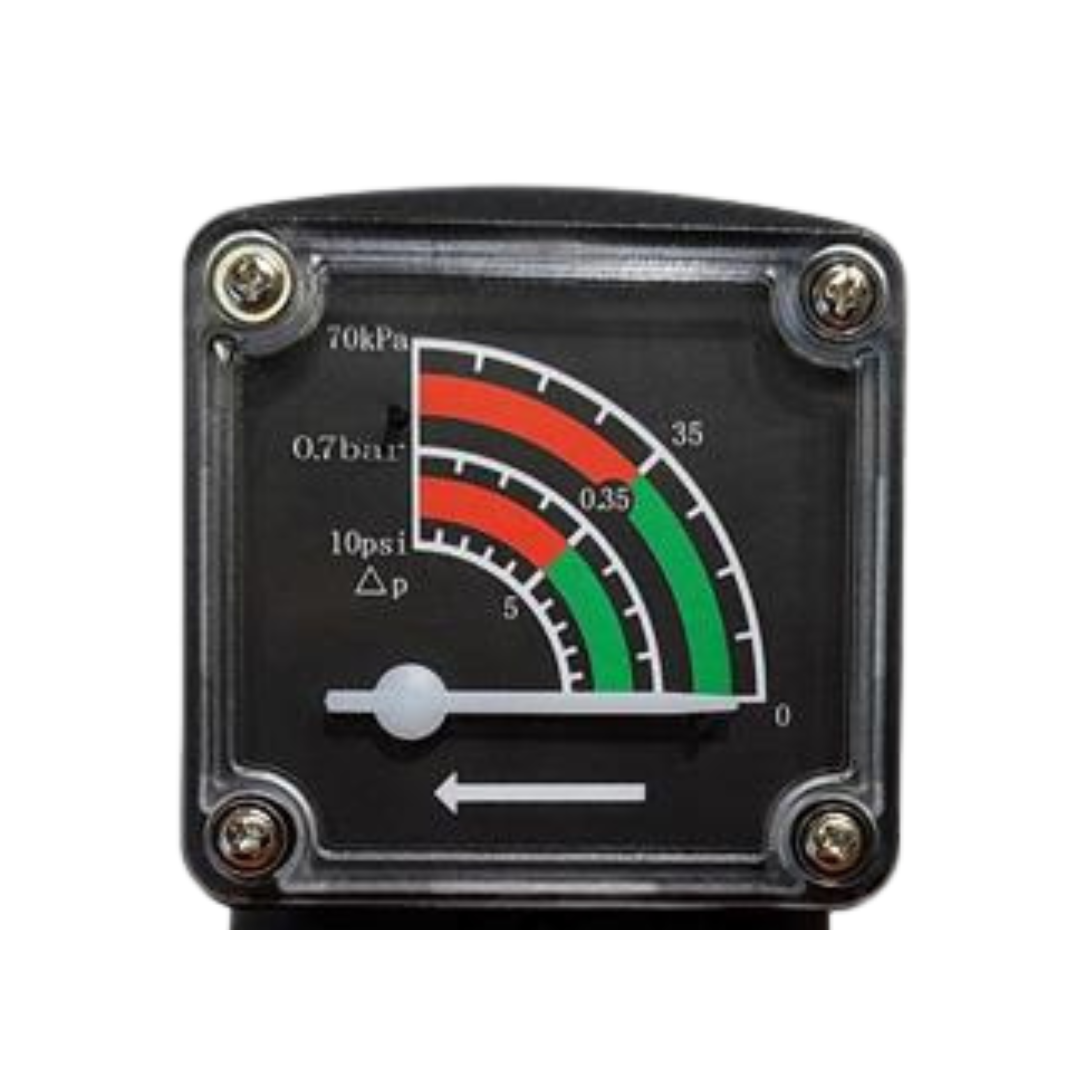

DP Gauge
Differential Pressure (DP) Gauge measures the pressure drop across a filter, showing when maintenance is needed and helping keep systems running efficiently.

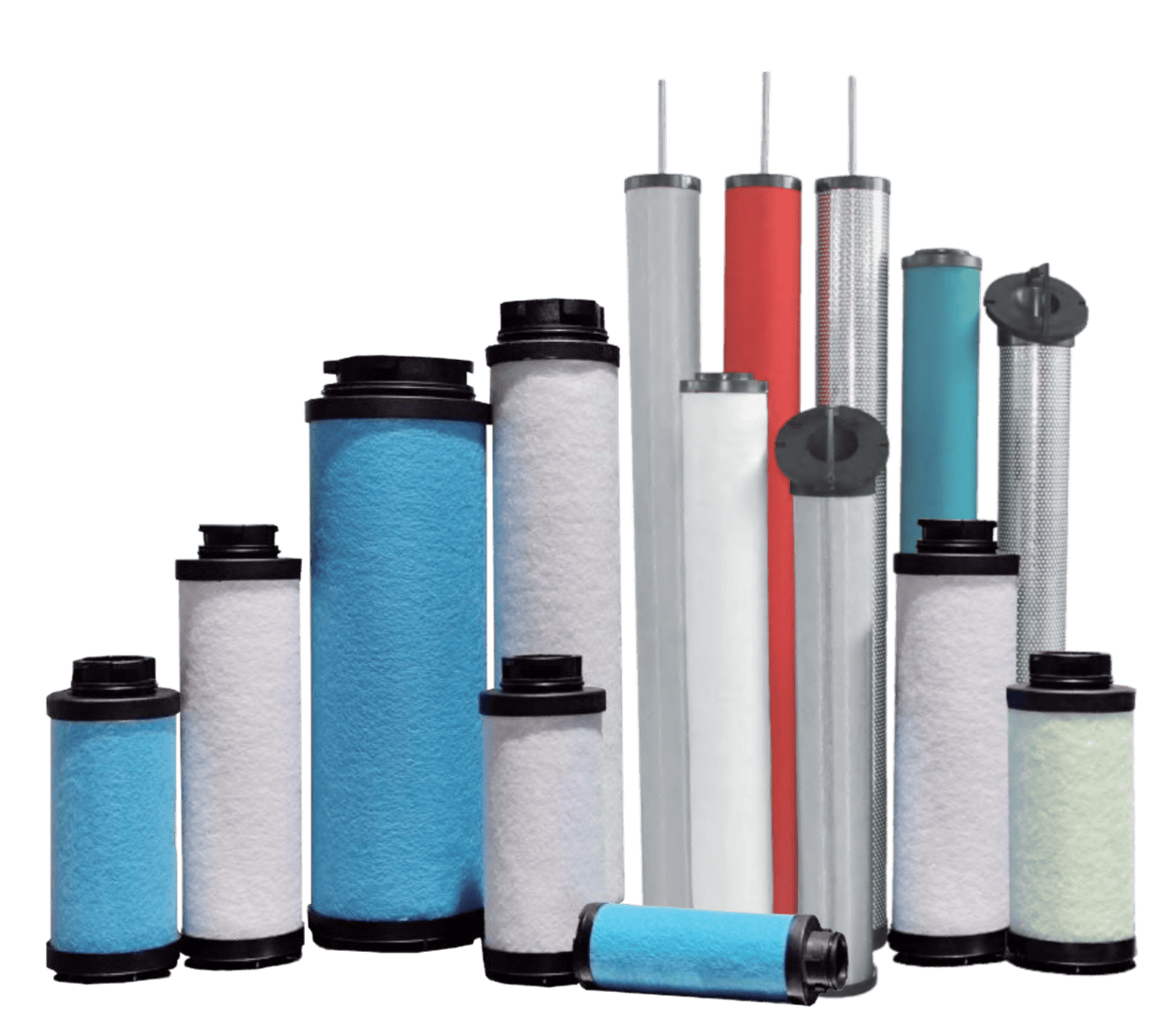

Filter Element
ARIES PRO filter elements remove liquid, oil mist, solid particles, and oil vapors to protect your downstream equipment and ensure product quality.
- High Precision
- Durable Design
- Energy Efficient
- Versatile Range

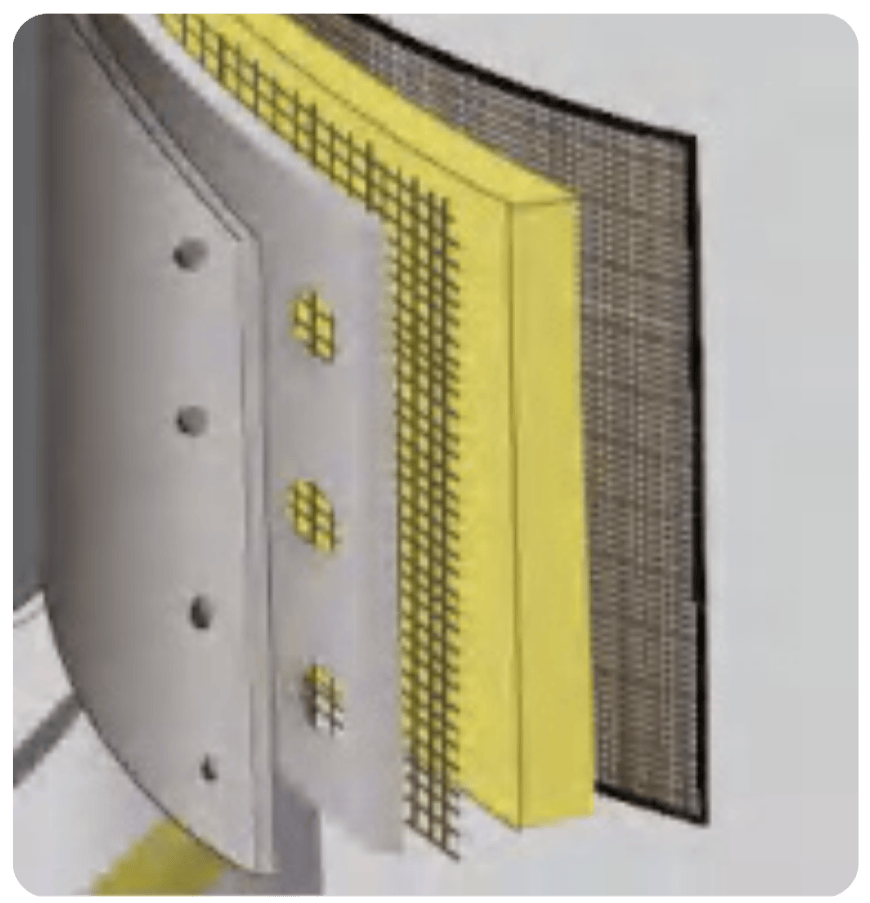

Grade P
3 µm — General Purpose Filtration
Two-stage mechanical separation removes solid and liquid particles down to 3µm. Ideal as a pre-filter protecting downstream equipment from bulk contamination.

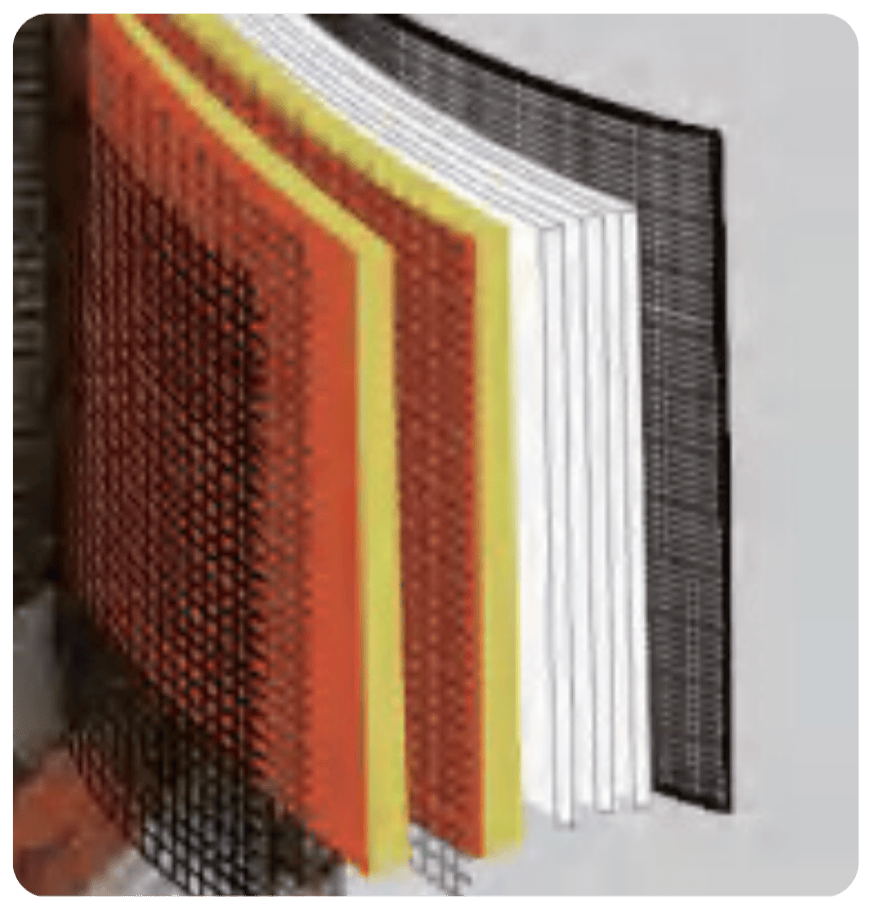

Grade M
1 µm — Oil Mist Removal
Coalescing fibre media captures and drains fine oil mist and submicron particles down to 1µm. Suitable for instrumentation, electronics, and food processing.

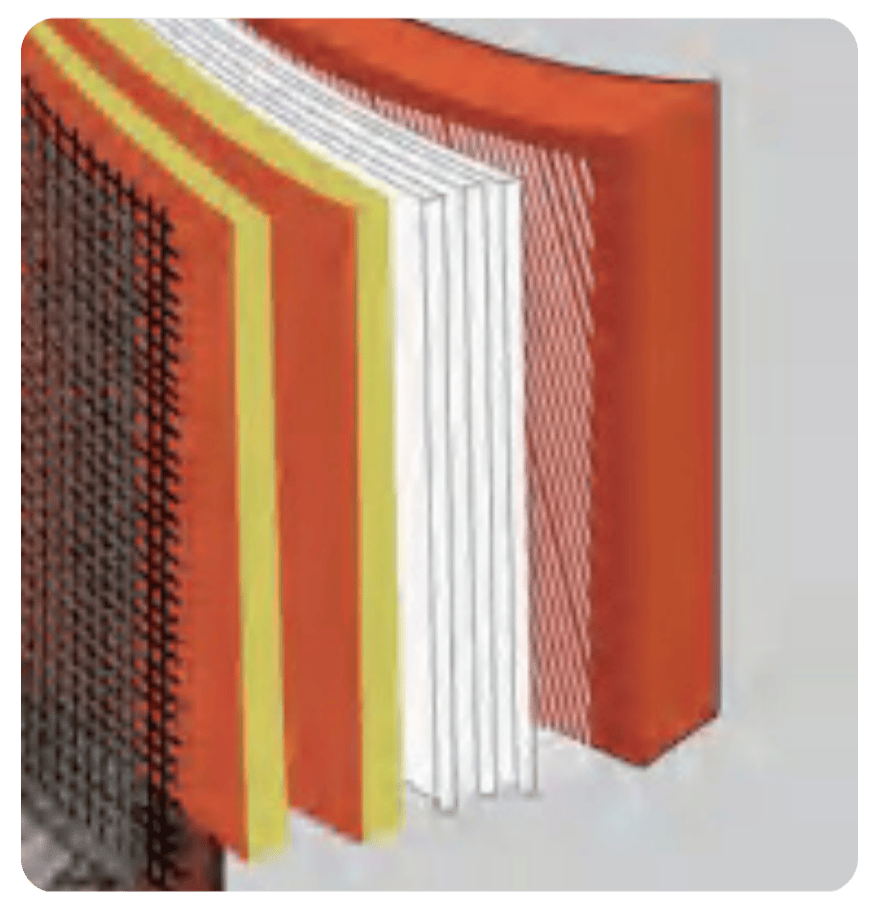

Grade S
0.01 µm — High-Purity Filtration
Multi-layer bonded fibre media with closed-foam sleeve achieves 0.01µm filtration. Designed for pharmaceutical, laser cutting, and precision manufacturing.

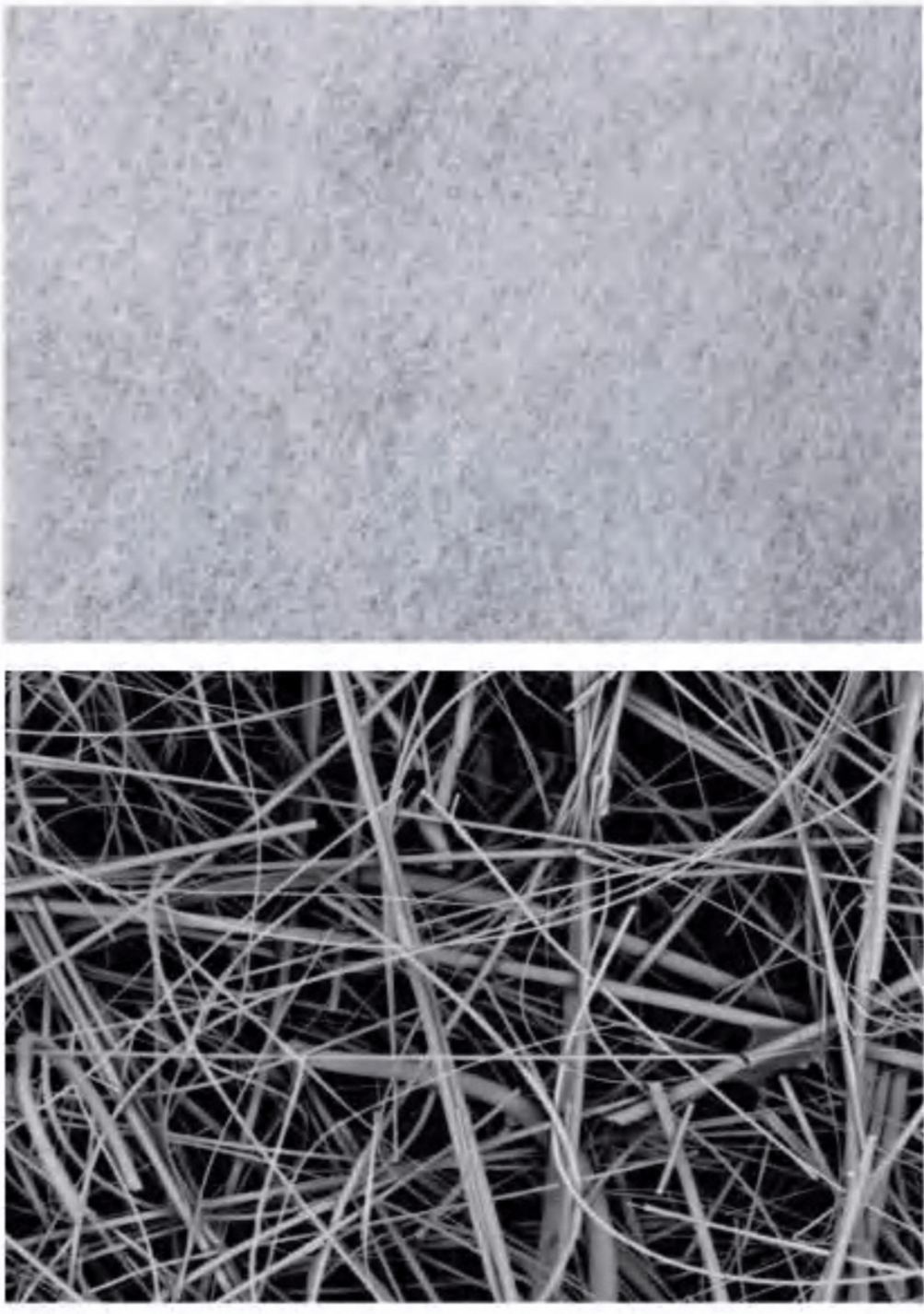

Technical Highlights
Avg Pore Size < 12μm
Grammage 50-150g/㎡
Low Flow Resistance
Water Resistance
Chemical Resistance
Long Service Life
Advanced Media: Made from borosilicate glass fiber using automatic winding and deep-folding processes to increase filtration area. Oleophobic properties provide superior impurity capture.
Filtration Grade
| Grade | Particulate (µm) | Oil Content (mg/m³) | Residual Oil | Efficiency | Application | Pressure Drop | Element Life |
|---|---|---|---|---|---|---|---|
| P | 3 | ≤5 | Coalesced | 99.9% | Pre-filter | 0.1 bar | 4000h |
| M | 1 | ≤0.5 | 0.5 ppm | 99.99% | Instrumentation | 0.12 bar | 4000h |
| S | 0.01 | ≤0.01 | 0.003 ppm | 99.999% | Pharma/Laser | 0.15 bar | 6000h |
| AC | 0.01 | ≤0.003 | Odor removal | Activated Carbon | Breathing air | 0.2 bar | 2000h |
The Concept
- Smart filtration design
- Zero oil carryover
- Low pressure drop
- Eco-friendly materials
