10 Bar | Upto -50° C

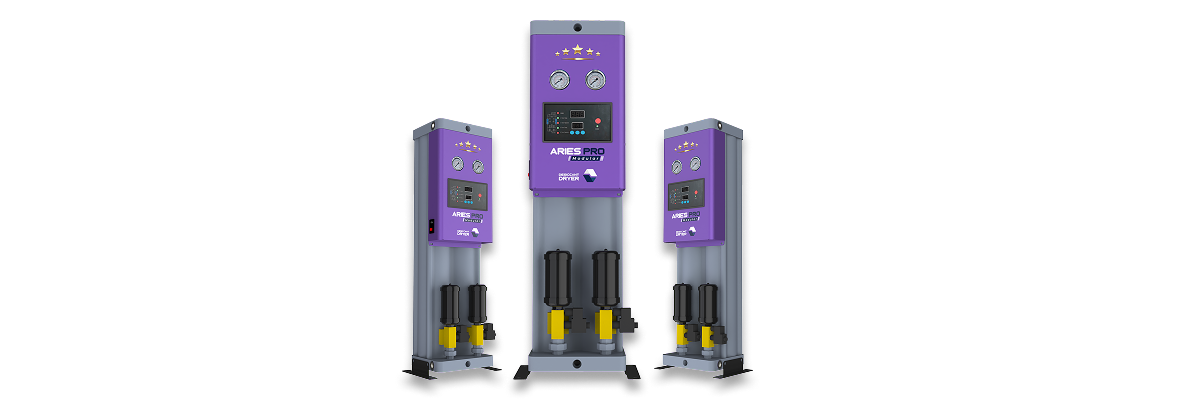

Humigaurd Pro Desiccant Dryer
Ultra-Dry Air Zero Compromise of Laser Cutting Industries
Dew Point up to −40°C | Upto 230 CFM | 16 bar pressure | Rust-free aluminium
Key Features
Compact Appearance
The overall shape gives value to your environment or space with sleek industrial design.
High Quality Aluminium Profile
Reasonable structure, pressure up to 16 bar with exceptional durability.
User Friendly
One key start, stable operation with intuitive control interface.
Longevity
Customized high pressure solenoid valve, stable action long service life.
10% Energy Saving
Faster switching cycle than conventional suction-length dryers — measurably lower energy every cycle.
2× Harder Adsorbent
Laser-grade silica gel that won't break or powder — ensuring consistent dew point over years.

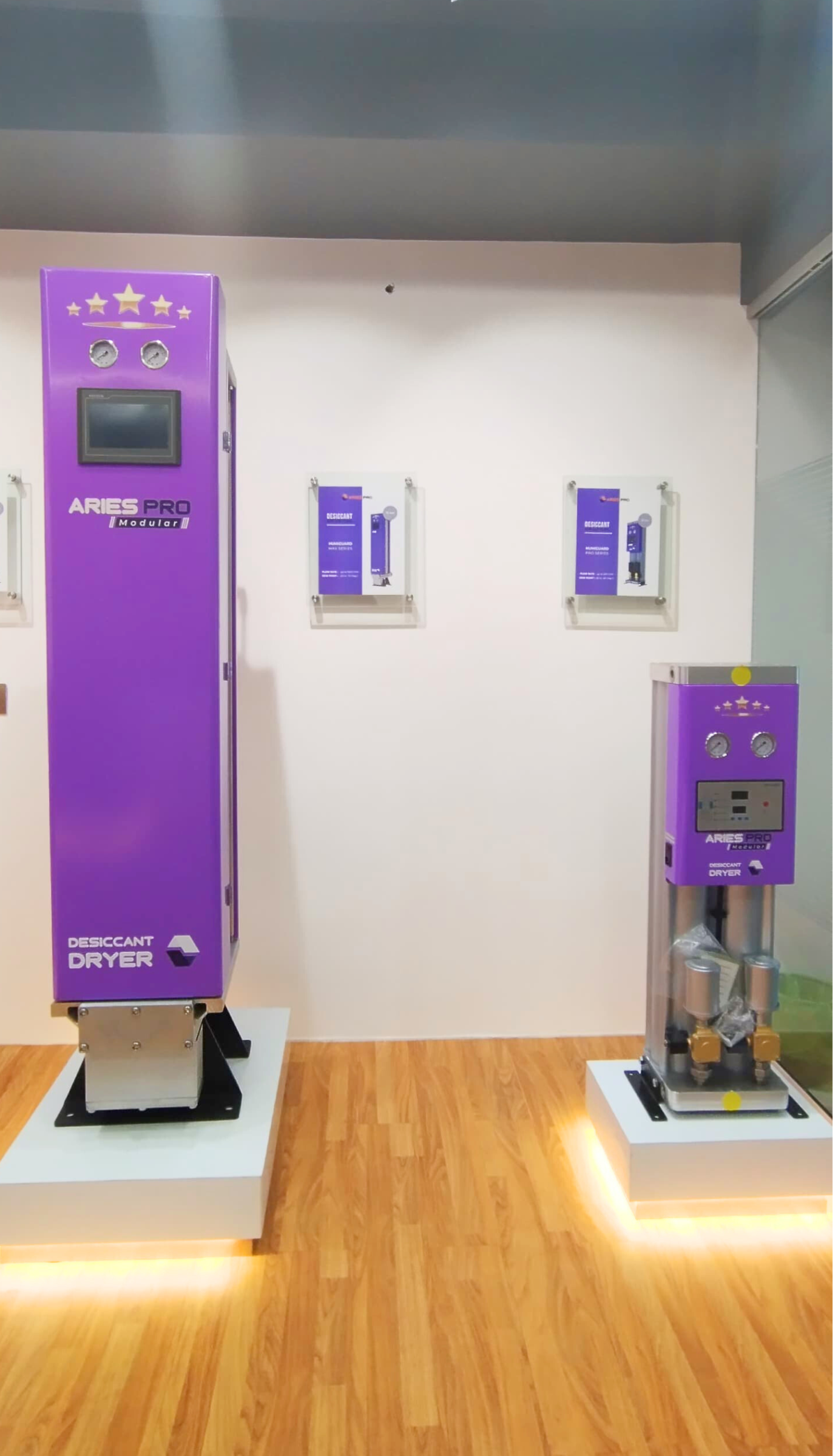

Installations Gallery
Technical Specifications
Ultra-Dry Air Zero Compromise of Laser Cutting Industries
| MODELS | CFM | m³/hr | KW | HP | COMP KW | COMP HP | IN/OUT | DIMENSIONS | WEIGHT |
|---|---|---|---|---|---|---|---|---|---|
| HL-MP-53 | 53 | 90 | 0.03 | 0.04 | 15 | 20 | 3/4" | 350*224*1000 | 50 |
| HL-MP-88 | 88 | 150 | 0.03 | 0.04 | 25 | 33 | 3/4" | 350*224*1300 | 60 |
| HL-MP-123 | 123 | 210 | 0.03 | 0.04 | 37 | 50 | 1" | 344*324*1700 | 70 |
| HL-MP-230 | 230 | 390 | 0.03 | 0.04 | 55 | 73 | 1.5" | 400*806*1340 | 140 |
Selection Guide
Dryer Selection Guide
| Inlet pressure (bar) | 16 | 15 | 14 | 13 | 12 | 10 | 11 |
|---|---|---|---|---|---|---|---|
| Correction Factor | 1 | 0.94 | 0.88 | 0.82 | 0.76 | 0.64 | 0.7 |
| Inlet air Temperature °C | 45 | 42 | 40 | 38 | 35 | 30 | 32 |
| Correction Factor | 0.69 | 0.8 | 0.9 | 1 | 1 | 1 | 1 |
Use correction factors to select the right dryer capacity based on actual operating conditions.
Standard Working Conditions
Max Air Inlet Temp: ≤ 38°C
Ambient Temp: ≤ 40 °C
Working Pressure: 16 bar
Operating Range
Max Air Inlet Temp: 40 °C
Max Ambient Temp: 45 °C
Working Pressure: 1 to 16 bar
Technical Index
Pressure Loss: ≤ 3%
Pressure Dew Point: upto - 40° C
Overview
.png)
Working Principle
Heatless Regenerative Adsorption Technology (PSA) — The laser cutting heatless modular regenerative adsorption dryer is formed by die-cast aluminum. Two independent chambers are filled with high-grade adsorbent that absorbs moisture from wet compressed air.
While one chamber is in adsorption mode (drying the air), the opposite chamber undergoes regeneration through pressure swing adsorption (PSA). During regeneration, a small portion of dried compressed air is expanded to atmospheric pressure, effectively stripping moisture from the saturated adsorbent. This cycle repeats automatically, guaranteeing a continuous supply of ultra-dry air with a consistent pressure dew point down to -40°C.
Continuous Cycle Efficiency: Rapid switching between chambers ensures uninterrupted dry air, ideal for laser cutting, pharmaceutical, and high-precision manufacturing.

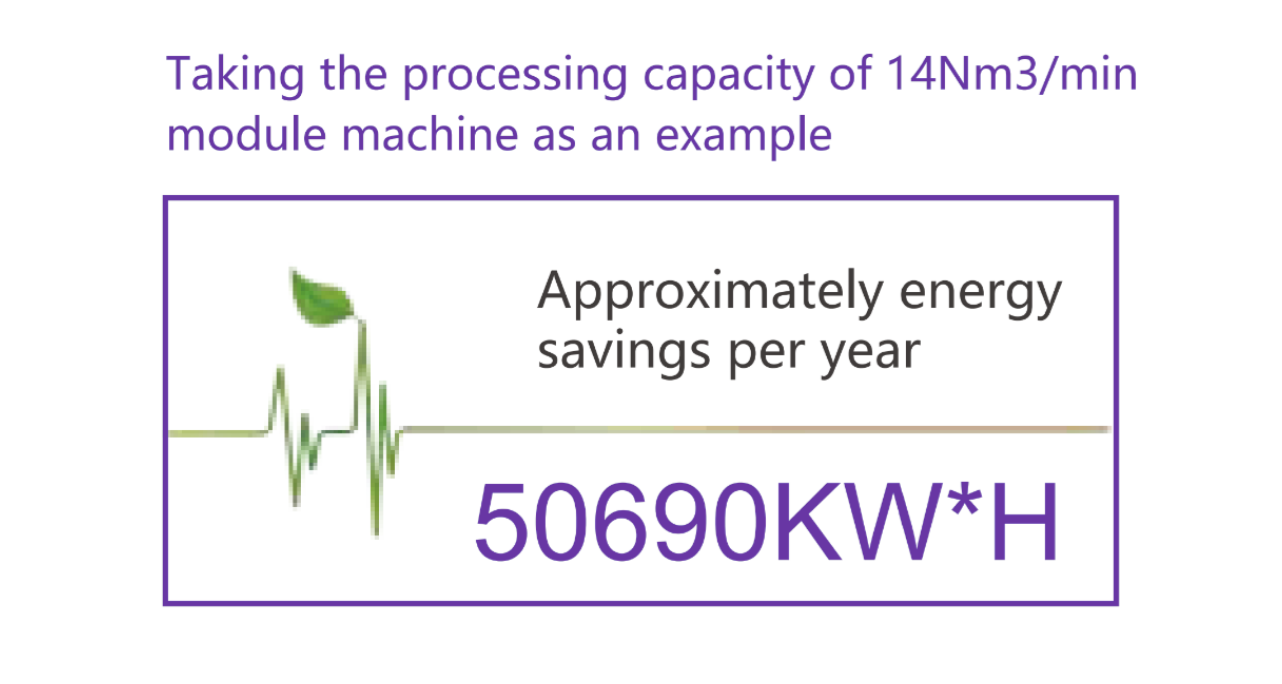

ARIES PRO MODULAR V/s Twin Tower Design

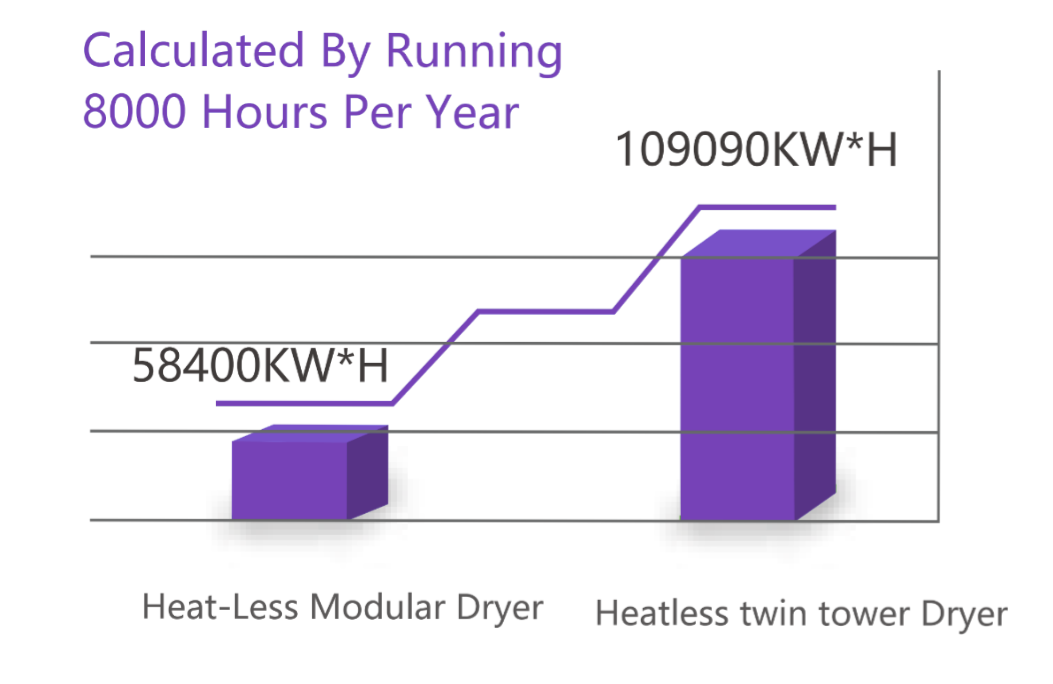

| Type | Capacity | Dimensions mm | Weight | Dew Point | Cycle | Regeneration air | Power | Energy/Year |
|---|---|---|---|---|---|---|---|---|
| Modular Adsorption Dryer | 14 m³/min | 1158 x 396 x 1646 | 140 Kg | up to -40 Deg C | 10 Sec | 8% | 7.3 Kw | 58,400 KW*H |
| Twin Tower Adsorption Dryer | 14 m³/min | 1280 x 853 x 2197 | 325 Kg | -20 Deg C | 20 Sec | 15% | 13.6 Kw | 109,090 KW*H |
The Concept
Our next-generation drying technology combines efficiency and durability :
- Pre-cooling channel for rapid condensation
- High-efficiency evaporation cycle
- Dual-stage water separation
- Minimal pressure drop, stable dew point
Available in 10 Bar, 16 Bar (plate) and 40 Bar (tube) variants.
